Dialogic TSP Call parameters configuration

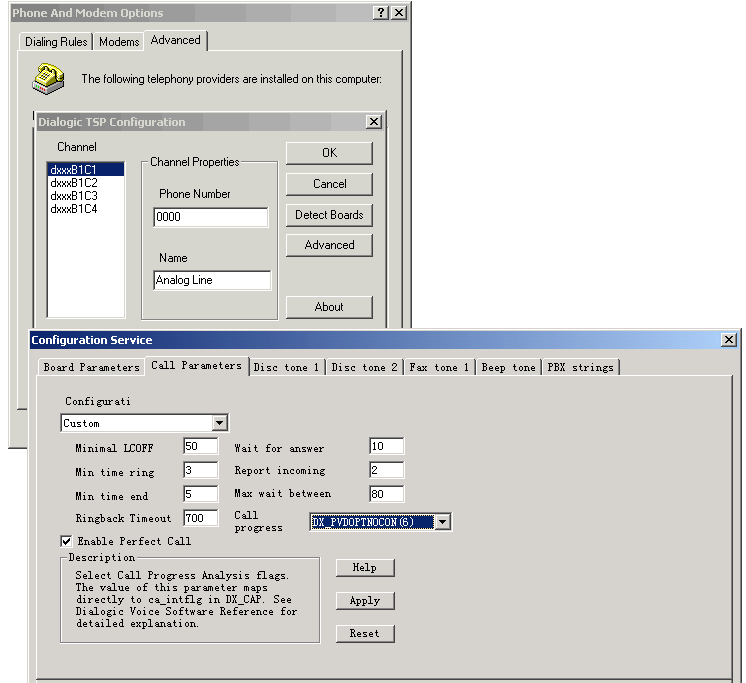

1. Click on the "Advanced" button causing the "Configuration Service" dialog box to appear.

2. Click on the "Call Parameters" tab
3. Change the "Configuration" from "Default" to "Custom".
4. Set the "Ringback Timeout" to 700
5. Check the "Enable Perfect Call"
6. "Call progress analysis flags" should have "DX_PVDOPTNOCON(6)" selected.
7. For digital installations,

A. click the "Digital Protocols" tab
B. Select your protocol for each card for your location, in the US, select "us_mf_io", which stands for US multi-frequency input/output.
C. Click "set" then "save".
(You may need to adjust parameters in your protocol file to match different signaling bits and wink times used by your T1 line.)
